Using TPUs
Deploy apps on Single Host TPU v4, v5e, v5p slices
Compatibility Notes
- Currently we only support Single Host TPU Topologies. If you have a use case that can benefit from Multi Host Topologies please reach out to us
- Currently we only support provisioning/scheduling TPU workloads using Node Auto Provisioning (NAP). We'll add support for nodepools soon.
Prerequistes
Kubernetes Version
While different TPU types require different mininum GKE version, considering all TPU types, Node Auto Provisioning Support and ability to run without privileded mode, we recommend using 1.28.7-gke.1020000 or later and 1.29.2-gke.1035000 or later
Please refer to following links for up to date requirements
- https://cloud.google.com/kubernetes-engine/docs/concepts/tpus#availability
- https://cloud.google.com/kubernetes-engine/docs/concepts/node-auto-provisioning#tpus
- https://cloud.google.com/kubernetes-engine/docs/how-to/node-auto-provisioning#configuring_tpus
- https://cloud.google.com/kubernetes-engine/docs/concepts/tpus#plan-tpu-configuration
Regional Availability
TPUs are available in limited zones. Following table lists the availability for Single Host TPUs.
Please refer to following links for up to date availability:
TPU Type | us-west1-c | us-west4-a | us-central1-a | us-central2-b | us-east1-c | us-east1-d | us-east5-a | us-east5-c | europe-west4-b |
---|---|---|---|---|---|---|---|---|---|
v4 | ✅ | ||||||||
v5e Device | ✅ | ✅ | |||||||
v5e PodSlice | ✅ | ✅ | ✅ | ||||||
v5p | ✅ | ✅ | ✅ |
Quota
Please make sure you have enough quota available in the respective region. You can apply for Quotas on your GCP Console: https://console.cloud.google.com/iam-admin/quotas
Node Auto Provisioning
Once you have Quota, add the TPU accelerators to NAP's limits. Please follow the guide at https://cloud.google.com/kubernetes-engine/docs/how-to/node-auto-provisioning#config_file to update these limits.
CPU and Memory Limits
TPU VMs often have large amounts of CPU and Memory. Please make sure to also adjust CPU and Memory resource limits in NAP config. Inadequate limits on CPU and Memory might block TPU nodes from scaling
Here is what a sample config looks like for adding TPU accelerators
resourceLimits:
- resourceType: 'cpu'
minimum: 0
maximum: 1000
- resourceType: 'memory'
minimum: 0
maximum: 10000
# ...
- resourceType: 'tpu-v4-podslice'
minimum: 0
maximum: 32
- resourceType: 'tpu-v5-lite-podslice'
minimum: 0
maximum: 32
- resourceType: 'tpu-v5-lite-device'
minimum: 0
maximum: 32
- resourceType: 'tpu-v5p-slice'
minimum: 0
maximum: 32
autoprovisioningLocations:
# Change these zones according to your cluster
- us-central2-b
management:
autoRepair: true
autoUpgrade: true
shieldedInstanceConfig:
enableSecureBoot: true
enableIntegrityMonitoring: true
diskSizeGb: 100
diskType: pd-balanced
Adding TPU Devices
Using Spec or Python SDK
Tip

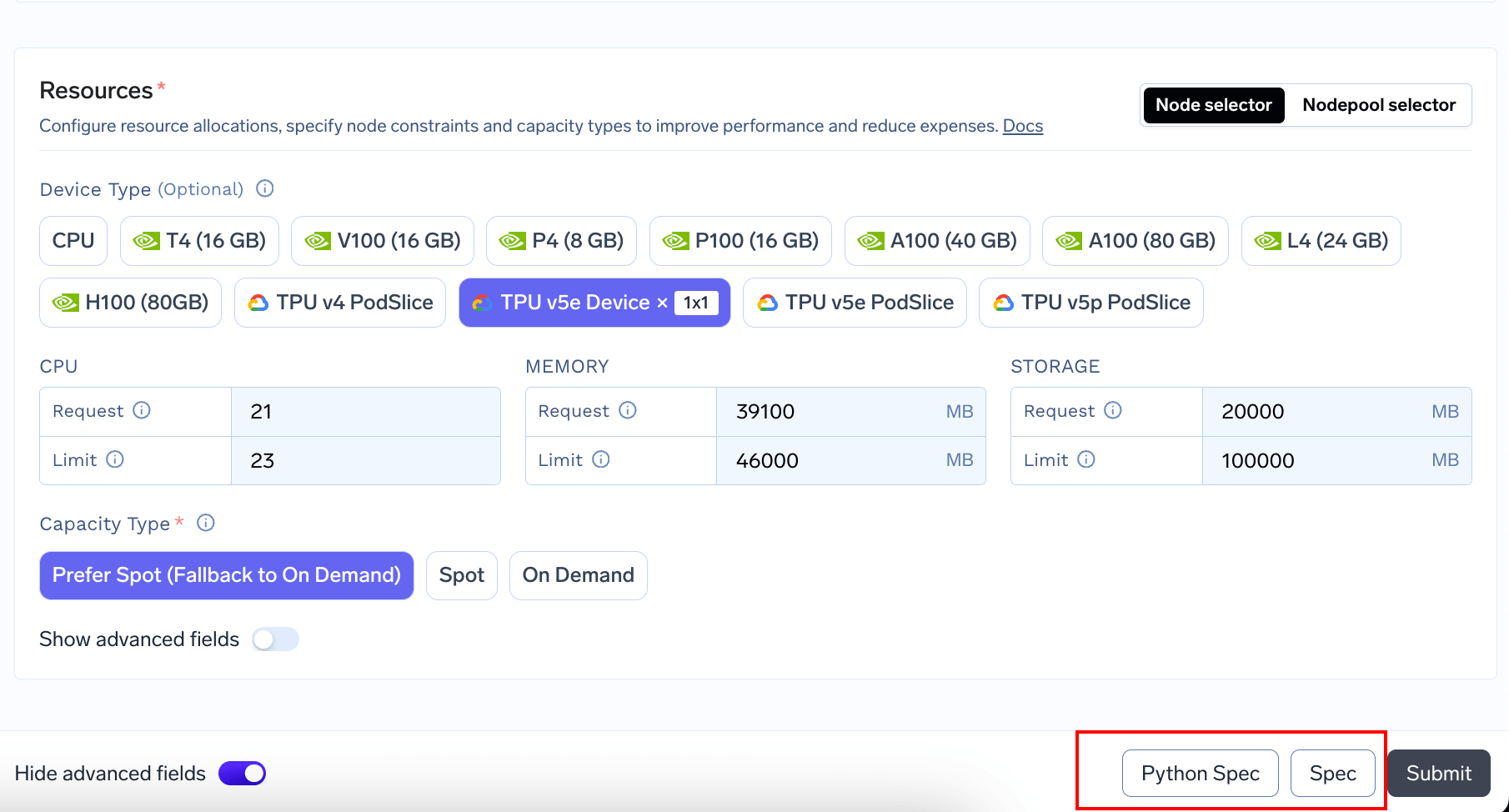

You can use the UI to generate equivalent YAML or Python Spec
You can add TPU by simply adding it under the resources.devices
section like folllows:
name: my-service
type: service
...
resources:
node:
type: node_selector
devices:
+ - name: tpu-v5-lite-device
+ type: gcp_tpu
+ topology: 1x1
cpu_request: 21
cpu_limit: 23
memory_request: 39100
memory_limit: 46000
ephemeral_storage_request: 20000
ephemeral_storage_limit: 100000
...
from truefoundry.deploy import Service, Resources, NodeSelector
+ from truefoundry.deploy import GcpTPU, TPUType
...
service = Service(
name=" my-service",
...
resources=Resources(
+ devices=[
+ GcpTPU(name=TPUType.V5_LITE_DEVICE, topology="1x1")
+ ]
cpu_request=21,
cpu_limit=23,
memory_request=39100,
memory_limit=46000,
ephemeral_storage_request=20000,
ephemeral_storage_limit=100000,
node=NodeSelector()
)
)
Supported values for name and topologies:
TPU Type | Name | Supported Topologies | Equivalent Devices Count |
---|---|---|---|
v4 PodSlice | tpu-v4-podslice | 2x2x1 | 4 |
v5 Lite Device | tpu-v5-lite-device | 1x1 , 2x2 , 2x4 | 1, 4, 8 |
v5 Lite PodSlice | tpu-v5-lite-podslice | 1x1 , 2x2 , 2x4 | 1, 4, 8 |
v5p Slice | tpu-v5p-slice | 2x2x1 | 4 |
Using UI

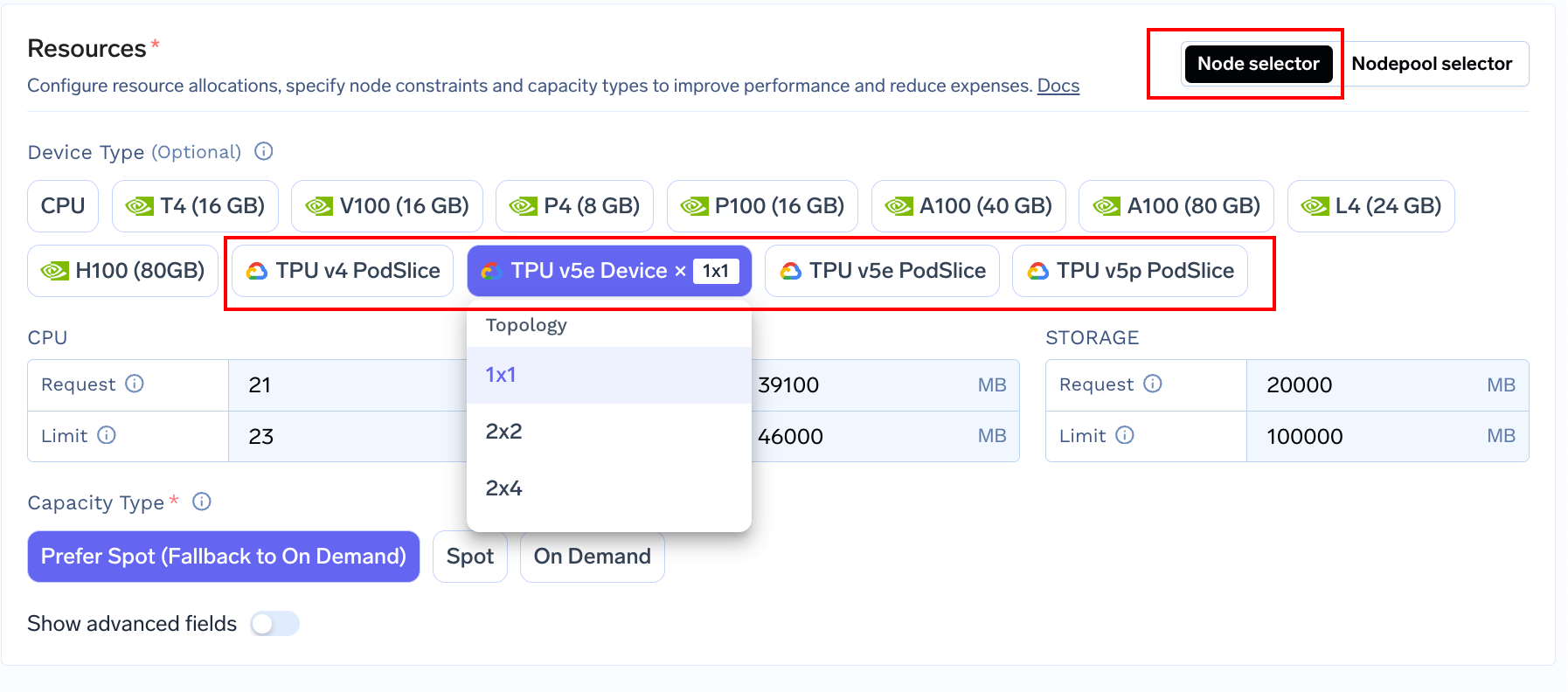

You can add TPUs to your Service / Job / Notebook / SSH Server by simply selecting a TPU Type and a topology from the Resources section
![](https://files.readme.io/57e8f82-image.png)
Examples
Before you begin
We recommend reading through following pages first to understand basics of deployment with TrueFoundry
Enumerate TPU chips
This simple example Job installs Jax and enumerates the assigned TPU devices
name: enumerate-tpu-devices
type: job
image:
type: image
image_uri: python:3.11
command: bash /run.sh
mounts:
- type: string
mount_path: /run.sh
data: |
#!/bin/bash
pip install --quiet --upgrade 'jax[tpu]>0.3.0' -f https://storage.googleapis.com/jax-releases/libtpu_releases.html
python -c 'import jax; print(jax.devices())'
retries: 0
trigger:
type: manual
resources:
node:
type: node_selector
capacity_type: spot_fallback_on_demand
devices:
- name: tpu-v5-lite-device
type: gcp_tpu
topology: 1x1
cpu_request: 21
cpu_limit: 23
memory_request: 39100
memory_limit: 46000
ephemeral_storage_request: 20000
ephemeral_storage_limit: 100000
trigger_on_deploy: true
On submitting, it would bring up a TPU node and produce the following output
[TpuDevice(id=0, process_index=0, coords=(0,0,0), core_on_chip=0)]
Running Gemma 2B with Jax
This Sample Notebook demonstrates running Gemma 2B using Jax in an interactive environment. The notebook can be uploaded directly to Notebook instance running with TPUs on TrueFoundry
Deploying Gemma 2B LLM with Jestream & MaxText on TPU v5e
This section is adapted from official GKE Guide: https://cloud.google.com/kubernetes-engine/docs/tutorials/serve-gemma-tpu-jetstream
Step 1: Get Access to the model on Kaggle
- Request Access to the Model on Kaggle: https://cloud.google.com/kubernetes-engine/docs/tutorials/serve-gemma-tpu-jetstream#sign-consent
- Create Kaggle Access Token: https://cloud.google.com/kubernetes-engine/docs/tutorials/serve-gemma-tpu-jetstream#generate-token . You will download a
kaggle.json
which we will use in the next step
Step 2: Add kaggle.json
to Secrets
Create a Secret add the contents of kaggle.json
like follows.
![](https://files.readme.io/ddfce6e-image.png)

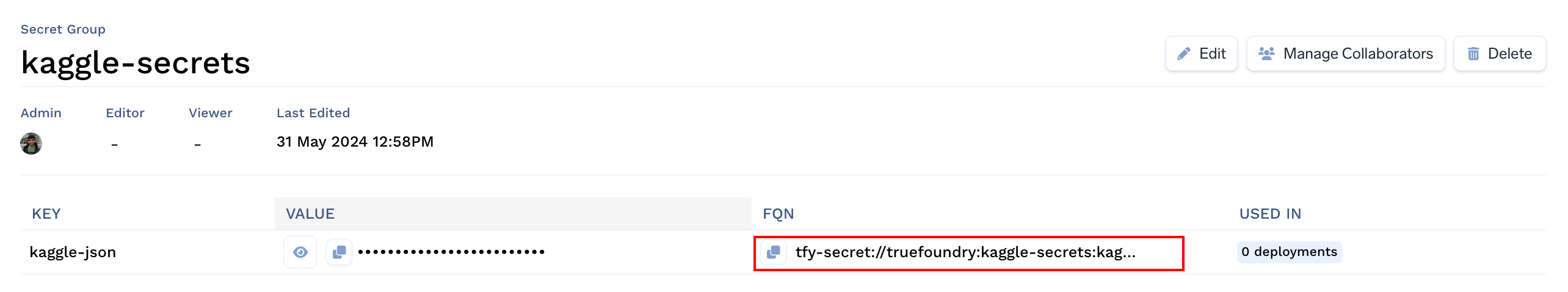

Once you have saved, keep the secret fqn handy, we'll use it later
![](https://files.readme.io/cf6ec4a-image.png)
Step 3: Create Workspace, GCS Bucket, GCP Service Account and Link Them
- Create a Workspace to deploy the model to
- Create a GCS Bucket from GCP Console
- Run the following script to create GCP Service Account with correct permissions. Make sure to edit your project id, bucket name, regions, workspace name
#!/bin/bash
gcloud config set project your-project
PROJECT_ID=$(gcloud config get project)
BUCKET_NAME=tpu-models-bucket
REGION=us-central1
LOCATION=us-central1-a
WORKSPACE_NAME=tpu-models-workspace
SA_NAME=tpu-models-sa
gcloud iam service-accounts create "${SA_NAME}"
gcloud storage buckets add-iam-policy-binding \
"gs://${BUCKET_NAME}" \
--member "serviceAccount:${SA_NAME}@${PROJECT_ID}.iam.gserviceaccount.com" \
--role roles/storage.objectUser \
--project "${PROJECT_ID}"
gcloud storage buckets add-iam-policy-binding \
"gs://${BUCKET_NAME}" \
--member "serviceAccount:${SA_NAME}@${PROJECT_ID}.iam.gserviceaccount.com" \
--role roles/storage.insightsCollectorService \
--project "${PROJECT_ID}"
gcloud iam service-accounts add-iam-policy-binding \
"${SA_NAME}@${PROJECT_ID}.iam.gserviceaccount.com" \
--role roles/iam.workloadIdentityUser \
--member "serviceAccount:${PROJECT_ID}.svc.id.goog[${WORKSPACE_NAME}/${SA_NAME}]"

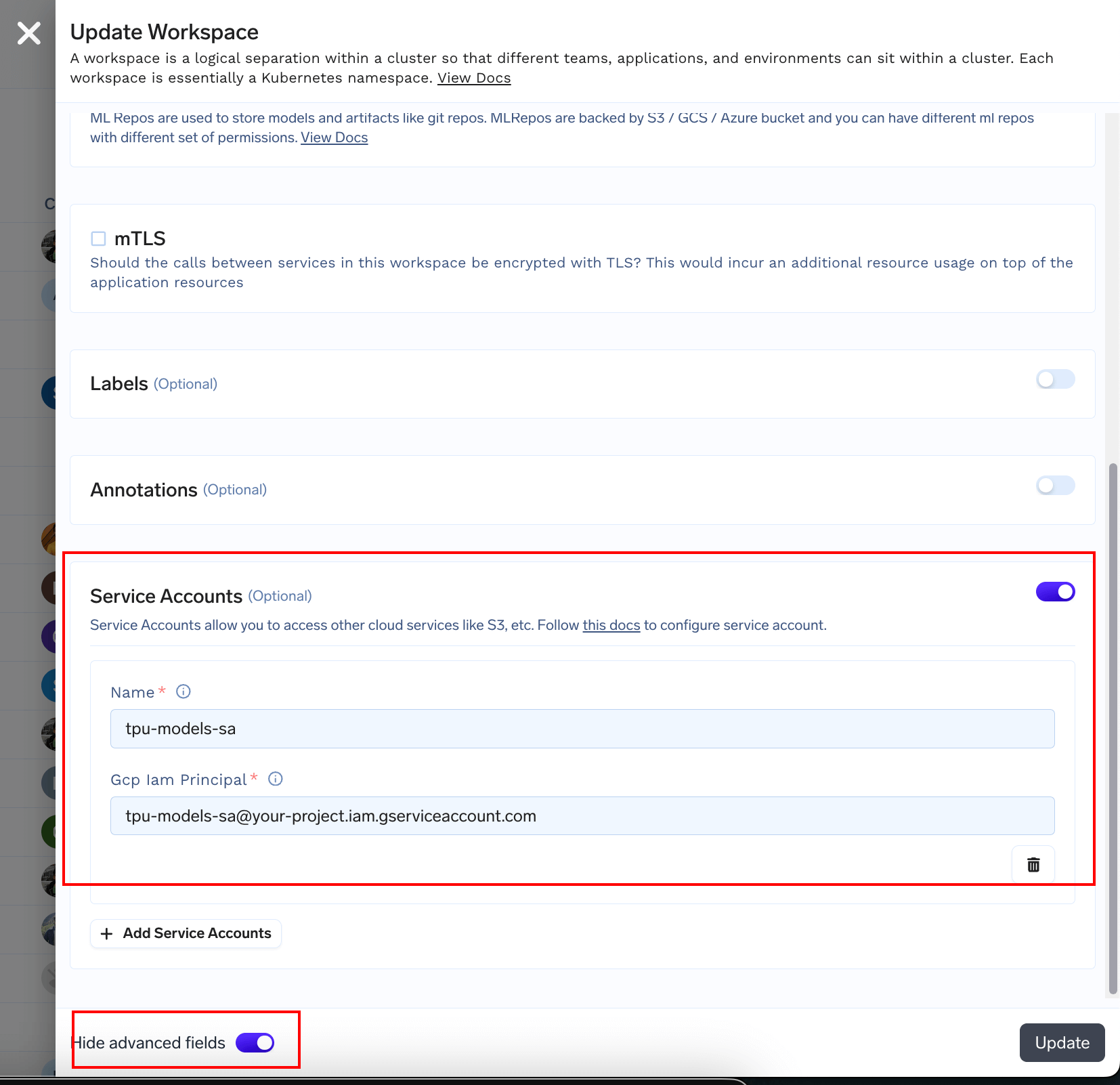

- Finally edit the workspace you created and add the service account principal
![](https://files.readme.io/b8462a9-image.png)
Step 4: Deploy and Run the Job to convert the model to MaxText Engine format
This Job pulls in the model from Kaggle using the kaggle.json
secret we created earlier and puts them in your GCS bucket using the serviceaccount we created earlier
import logging
from truefoundry.deploy import Job, Image, Resources, GcpTPU, TPUType, SecretMount
logging.basicConfig(level=logging.INFO)
job = Job(
name="maxengine-ckpt-conv",
# Mention your bucket in command below
image=Image(
image_uri="us-docker.pkg.dev/cloud-tpu-images/inference/inference-checkpoint:v0.2.0",
command="/usr/bin/checkpoint_converter.sh -b=tpu-models-bucket -m=google/gemma/maxtext/2b-it/3",
),
# Service account to use to write to the bucket
service_account="tpu-models-sa",
# Secret to use for fetching the model checkpoint from Kaggle
mounts=[
SecretMount(
mount_path="/kaggle/kaggle.json",
secret_fqn="tfy-secret://your-org:kaggle-secrets:kaggle-json"
)
],
resources=Resources(
cpu_request=20,
cpu_limit=20,
memory_request=150000,
memory_limit=190000,
ephemeral_storage_request=30000,
ephemeral_storage_limit=40000,
devices=[
GcpTPU(
name=TPUType.V5_LITE_DEVICE,
topology="2x2"
)
]
),
trigger_on_deploy=True,
)
# Add the fqn of the Workspace we created earlier
job.deploy(workspace_fqn="<your-workspace-fqn>", wait=False)

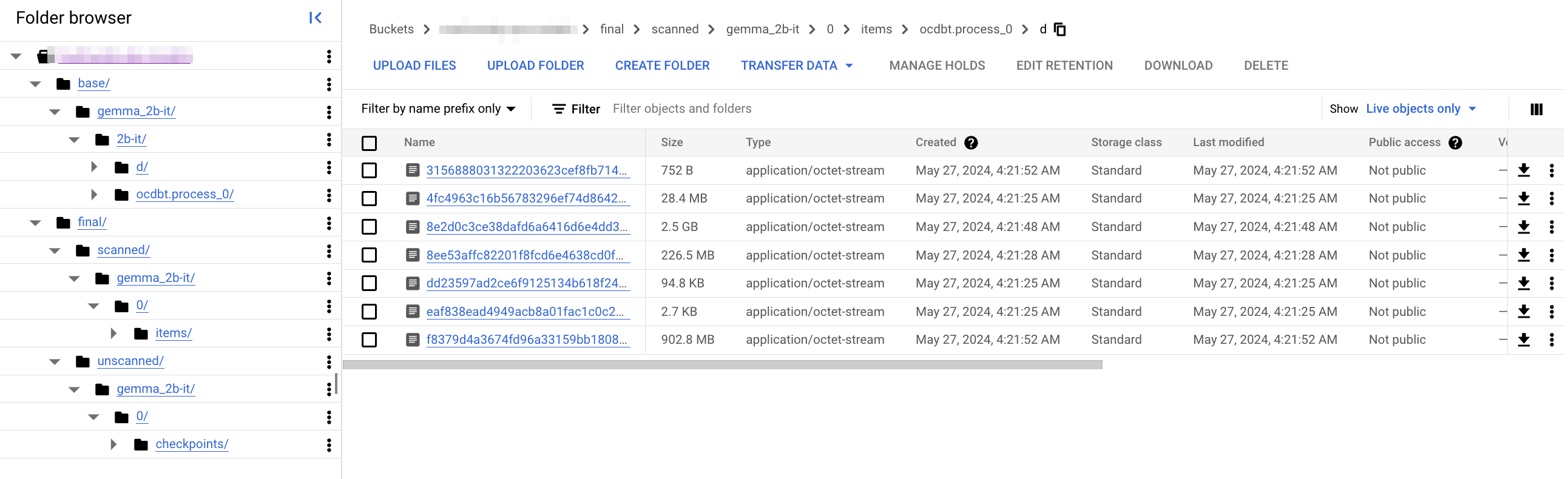

Once this runs successfully, you will get the base and converted checkpoints in your bucket
Step 5: Deploy the model via MaxText Engine
import logging
from servicefoundry import Service, Image, Port, Resources, GcpTPU, TPUType
logging.basicConfig(level=logging.INFO)
service = Service(
name="maxengine-server",
# Model name and bucket are mentioned in the command
image=Image(
image_uri="us-docker.pkg.dev/cloud-tpu-images/inference/maxengine-server:v0.2.0",
command="/usr/bin/maxengine_server_entrypoint.sh model_name=gemma-2b tokenizer_path=assets/tokenizer.gemma per_device_batch_size=4 max_prefill_predict_length=1024 max_target_length=2048 async_checkpointing=false ici_fsdp_parallelism=1 ici_autoregressive_parallelism=-1 ici_tensor_parallelism=1 scan_layers=false weight_dtype=bfloat16 load_parameters_path=gs://tpu-models-bucket/final/unscanned/gemma_2b-it/0/checkpoints/0/items",
),
ports=[
Port(port=9000, expose=False),
],
# Service account to use to read from the bucket
service_account="tpu-models-sa",
resources=Resources(
cpu_request=20,
cpu_limit=24,
memory_request=40000,
memory_limit=48000,
ephemeral_storage_request=30000,
ephemeral_storage_limit=40000,
devices=[
GcpTPU(
name=TPUType.V5_LITE_DEVICE,
topology="1x1"
)
]
),
)
# Add the fqn of the Workspace we created earlier
service.deploy(workspace_fqn="<your-workspace-fqn>", wait=False)
This runs the maxengine server in gRPC mode on port 9000
Step 5: Deploy a HTTP Head Server
Finally we can deploy a http head server that is just a gRPC client wrapped in FastAPI app
import logging
from servicefoundry import Service, Image, LocalSource, DockerFileBuild, Port, Resources
logging.basicConfig(level=logging.INFO)
service = Service(
name="jetstream-http",
image=Image(image_uri="truefoundrycloud/jetstream-http-patched:v0.2.0"),
ports=[
Port(
port=8000,
host="<Your Host>"
),
],
resources=Resources(
cpu_request=0.5,
cpu_limit=1,
memory_request=500,
memory_limit=1000,
ephemeral_storage_request=1000,
ephemeral_storage_limit=4000,
),
)
# Add the fqn of the Workspace we created earlier
service.deploy(workspace_fqn="<your-workspace-fqn>", wait=False)

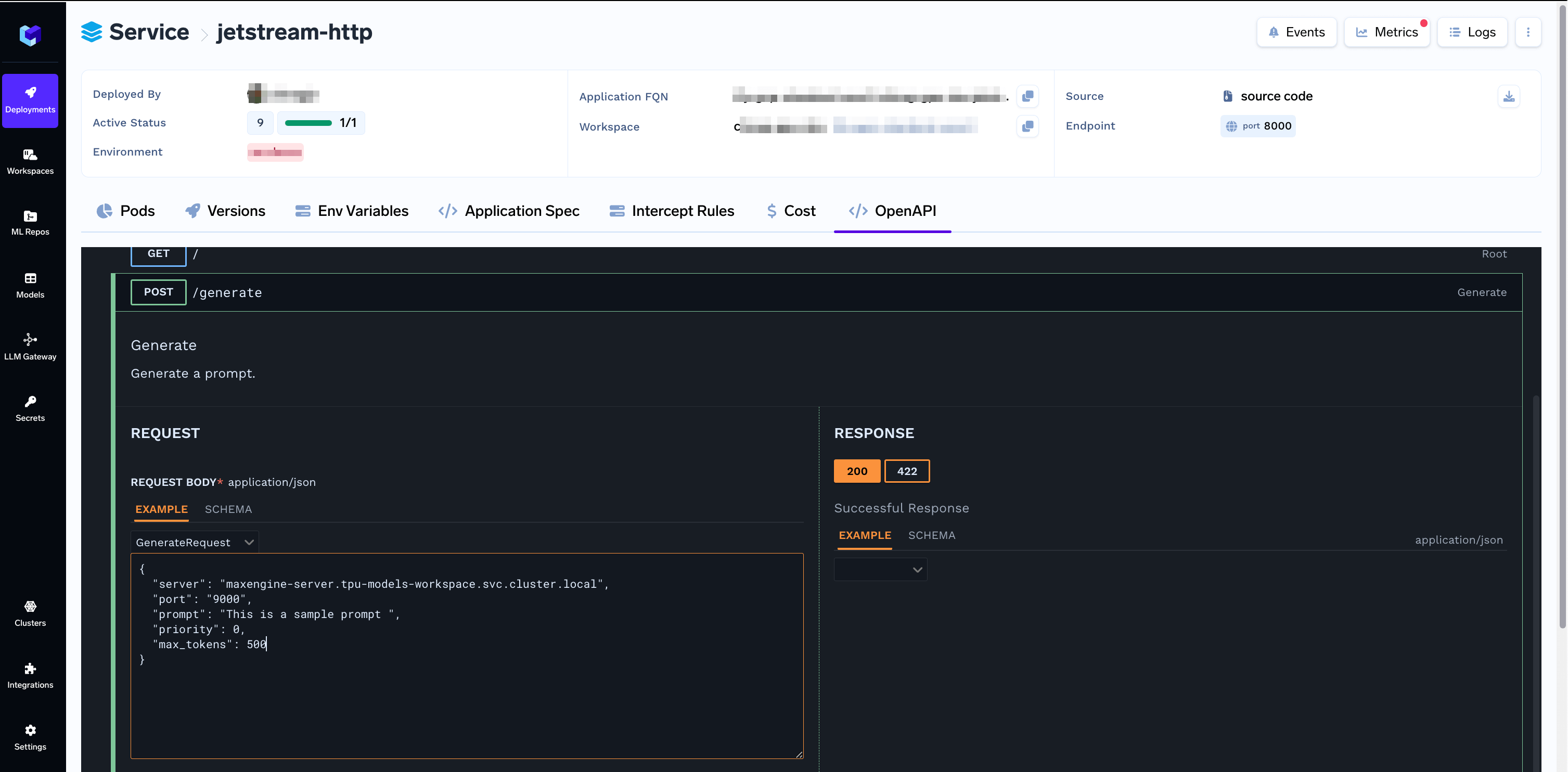

Once deployed, you can make request with the following body on the /generate
endpoint
{
"server": "maxengine-server.tpu-models-workspace.svc.cluster.local",
"port": "9000",
"prompt": "This is a sample prompt ",
"priority": 0,
"max_tokens": 500
}
![](https://files.readme.io/6a18b0f-image.png)
