Multi Model Server (MMS) is a flexible and easy to use tool for serving deep learning models trained using any ML/DL framework with flexibility to write custom handlers and configure dynamic batching. In this example, we will deploy a simple MNIST model using MMS. You can find the code for this example here.
Live DemoYou can view this example deployed here.
The key files are:
  • model/mnist.py: The pytorch model definition.
  • model/mnist_cnn.pt: The trained pytorch model checkpoint.
  • model/mnist_handler.py: Contains the main handler that runs the inference.
  • requirements.txt: Contains the dependencies.
  • config.properties: Contains the configuration for the model server.

How to write the inference function in MMS

MMS Handler
...
class PyTorchImageClassifier:
    """
    PyTorchImageClassifier service class. This service takes a flower
    image and returns the name of that flower.
    """

    def __init__(self):
        self.checkpoint_file_path = None
        self.model = None
        self.mapping = None
        self.device = "cpu"
        self.initialized = False

    def initialize(self, context):
        """
        Load the model and mapping file to perform infernece.
        """

        properties = context.system_properties
        model_dir = properties.get("model_dir")

        # Read checkpoint file
        checkpoint_file_path = os.path.join(model_dir, "mnist_cnn.pt")
        if not os.path.isfile(checkpoint_file_path):
            raise RuntimeError("Missing model.pth file.")

        model = Net()
        state_dict = torch.load(checkpoint_file_path, map_location="cpu")
        model.load_state_dict(state_dict)

        for param in model.parameters():
            param.requires_grad = False

        self.model = model

        # Read the mapping file, index to flower
        mapping_file_path = os.path.join(model_dir, "index_to_name.json")
        if not os.path.isfile(mapping_file_path):
            raise RuntimeError("Missing the mapping file")
        with open(mapping_file_path) as f:
            self.mapping = json.load(f)

        self.initialized = True

    def preprocess(self, data):
        """
        Scales, crops, and normalizes a PIL image for a PyTorch model,
        returns an Numpy array
        """
        image = data[0].get("data")
        if image is None:
            image = data[0].get("body")

        my_preprocess = transforms.Compose([transforms.ToTensor(), transforms.Normalize((0.1307,), (0.3081,))])
        image = Image.open(io.BytesIO(image))
        image = my_preprocess(image)
        return image

    def inference(self, img, topk=10):
        """Predict the class (or classes) of an image using a trained deep learning model."""
        # Convert 2D image to 1D vector
        img = np.expand_dims(img, 0)

        img = torch.from_numpy(img)

        self.model.eval()
        inputs = Variable(img).to(self.device)
        logits = self.model.forward(inputs)

        ps = F.softmax(logits, dim=1)
        topk = ps.cpu().topk(topk)

        probs, classes = (e.data.numpy().squeeze().tolist() for e in topk)

        results = []
        for i in range(len(probs)):
            tmp = dict()
            tmp[self.mapping[str(classes[i])]] = probs[i]
            results.append(tmp)
        return [results]

    def postprocess(self, inference_output):
        return inference_output

# Following code is not necessary if your service class contains `handle(self, data, context)` function
_service = PyTorchImageClassifier()


def handle(data, context):
    if not _service.initialized:
        _service.initialize(context)

    if data is None:
        return None

    data = _service.preprocess(data)
    data = _service.inference(data)
    data = _service.postprocess(data)

    return data
MMS requires a single function handle that takes in data and context as inputs and returns the inference output. The function in our code orchestrates the other 4 functions:
  • initialize: Loads the model and any other resources needed for inference.
  • preprocess: Preprocesses the input data.
  • inference: Runs the inference.
  • postprocess: Postprocesses the output data.
Please see MMS Custom Service docs for more details.

Exporting the model in MAR (model archive) format

MMS neatly packages the model definition, handler and checkpoint into a single file called .mar file
model-archiver --model-name mnist --model-path model/ --handler mnist_handler.py:handle --export-path model_store/ --runtime python --force
This will give us a mnist.mar file.
model_store/
└── mnist.mar

Running the server locally

  1. Install the dependencies
Shell
pip install -r requirements.txt
  1. Package the model in MAR format
Shell
model-archiver --model-name mnist --model-path model/ --handler mnist_handler.py:handle --export-path model_store/ --runtime python --force
  1. Run the server
Shell
export MODEL_DIR="$(pwd)/model_store"
multi-model-server --foreground --model-store $MODEL_DIR --start --mms-config config.properties
  1. Test the server
Shell
curl -X POST -H "Content-Type: application/json" http://0.0.0.0:8080/predictions/mnist -T 0.png
The output should look like this:
[
  {
    "0": 1.0
  },
  {
    "2": 1.2512639535611214e-10
  },
  {
    "9": 2.1287303517136813e-11
  },
  {
    "6": 6.419928824663579e-12
  },
  {
    "7": 5.592026407902351e-12
  },
  {
    "8": 9.722452877503063e-13
  },
  {
    "1": 4.075868061028526e-13
  },
  {
    "5": 1.0949020959631281e-13
  },
  {
    "3": 7.591976635031028e-15
  },
  {
    "4": 2.665370010069895e-15
  }
]

Deploying the model with TrueFoundry

To deploy the model, we need to package both the model file and the code. To do this, we can follow the steps below:
1

Log the MAR Model To Model Registry

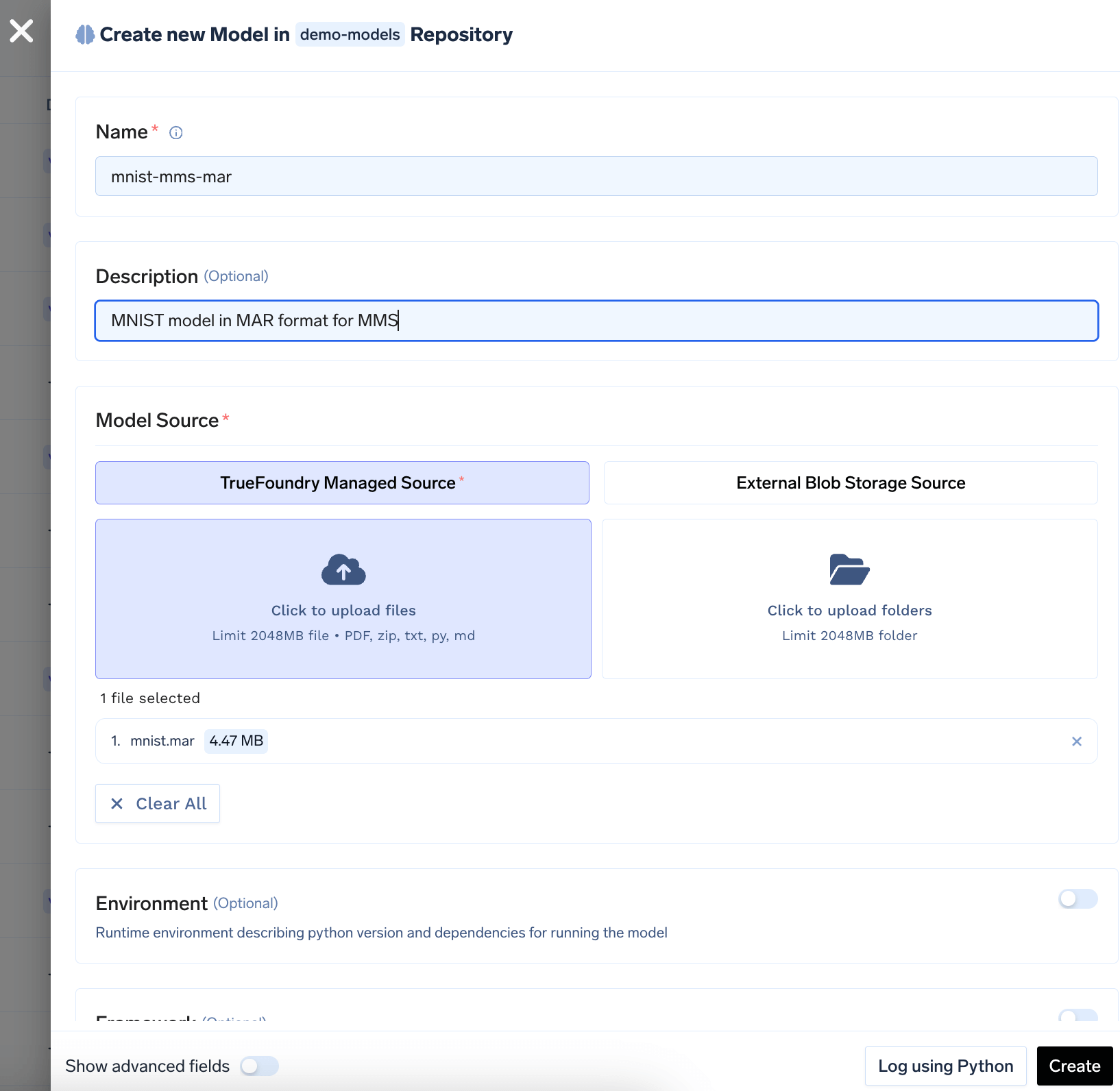

Log the mnist.mar file to the model registry. You can follow the guide here to log the model to the registry.
Make sure to log only the mnist.mar file.
Log Model to Model Registry
2

Push the code to a Git repository or directly deploy from local machine

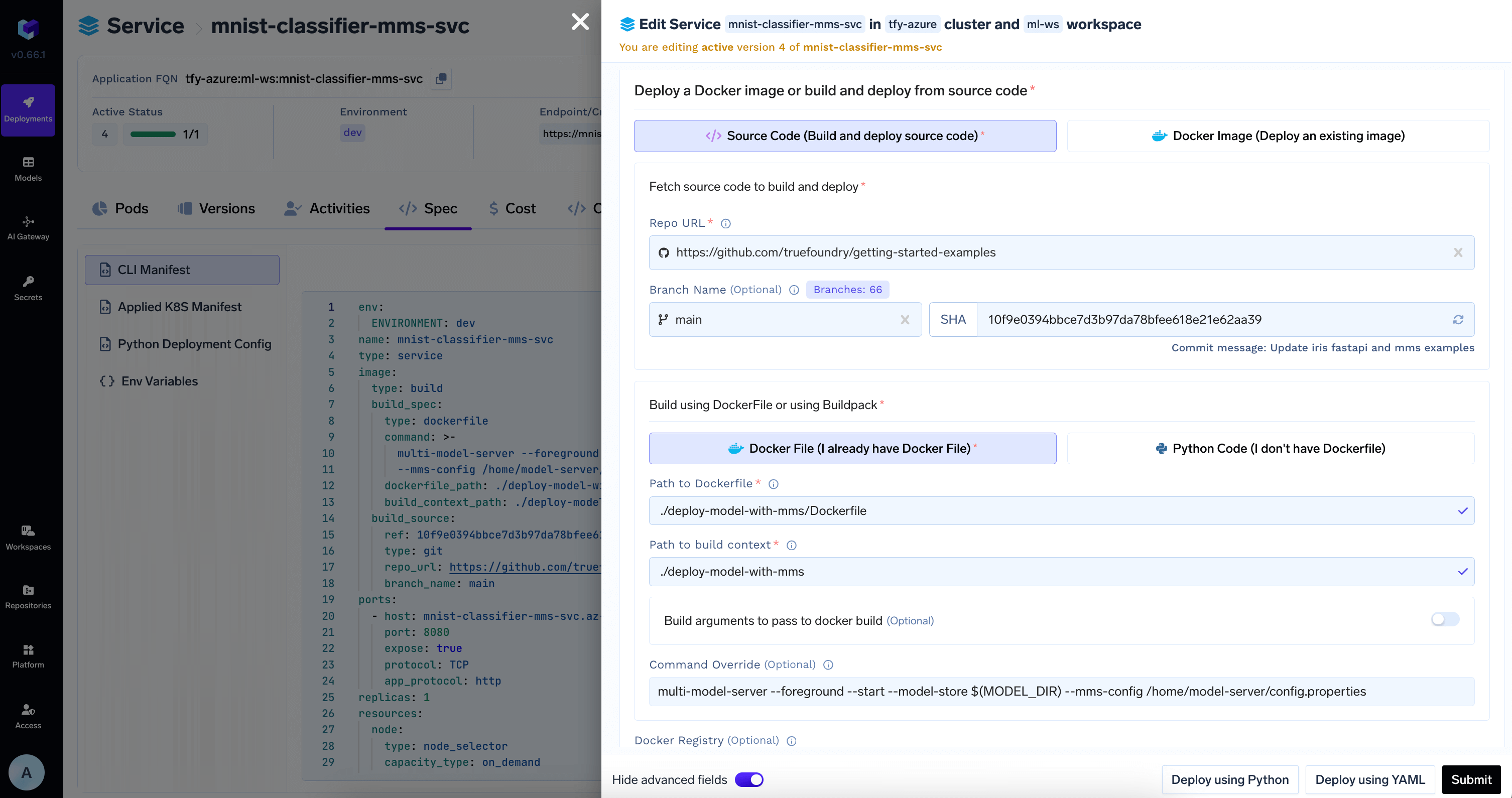

Once you have tested your code locally, we highly recommend pushing the code a Git repository. This allows you to version control the code and also makes the deployment process much easier. However, if you don’t have access to a Git repository, or the Git repositories are not integrated with Truefoundry, you can directly deploy from local laptop.You can follow the guide here to deploy your code.Configure the source code and build settings as follows:Configure Build SettingsThe command looks like this which references the MODEL_DIR environment variable where the model will be downloaded to.
multi-model-server --foreground --start --model-store $(MODEL_DIR) --mms-config /home/model-server/config.properties
3

Download Model from Model Registry in the deployment configuration

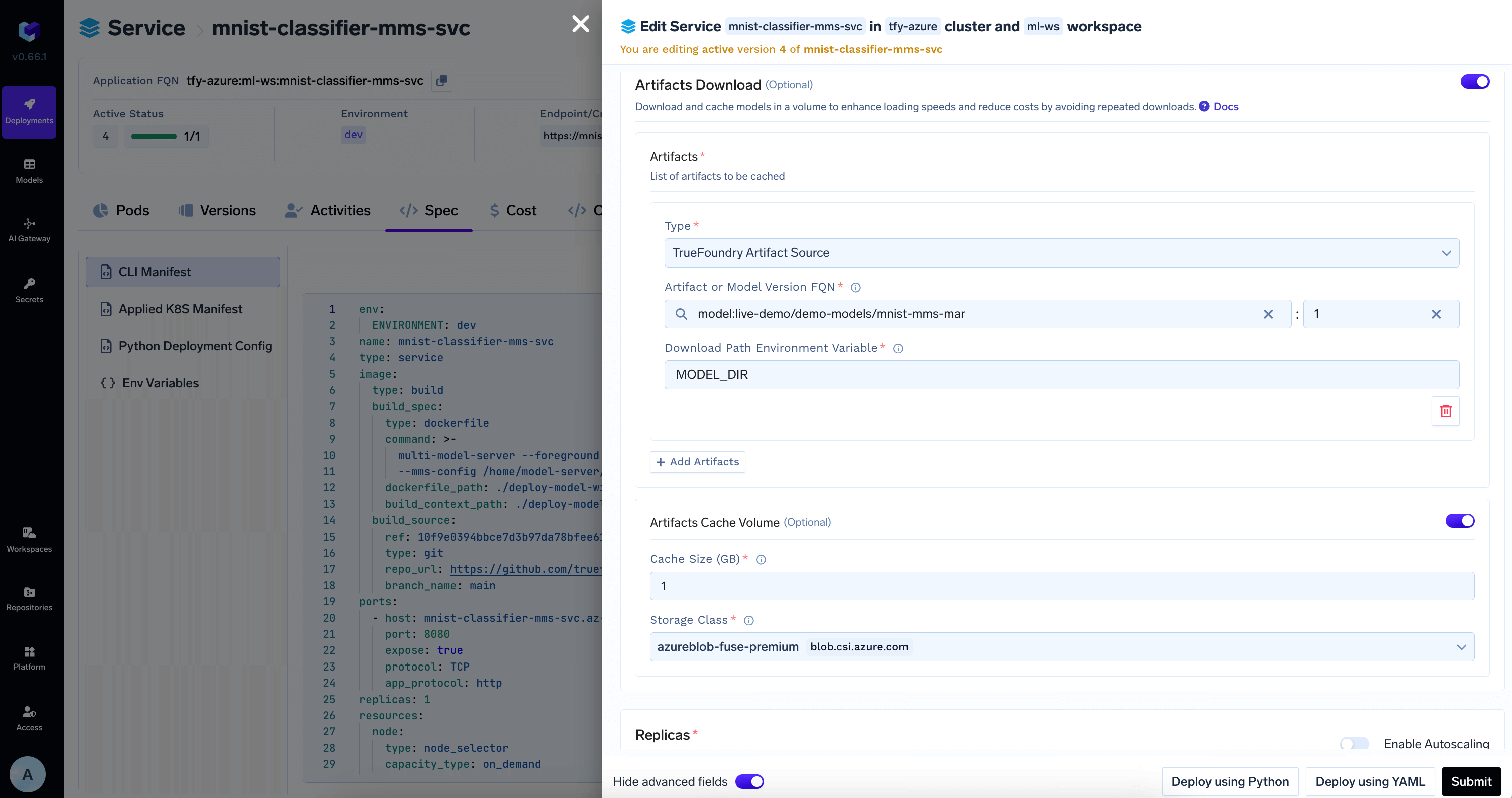

TrueFoundry can automatically download the model at the path specified in the MODEL_DIR environment variable to the deployed service.Add the model id and revision from HuggingFace Hub in Artifacts Download sectionDownload Model from Model Registry
4

View the deployment, logs and metrics

Once the deployment goes through, you can view the deployment, the pods, logs, metrics and events to debug any issues.
