SAML v2 with Azure AD
Configure SAML v2 for Azure AD/Microsoft Entra ID

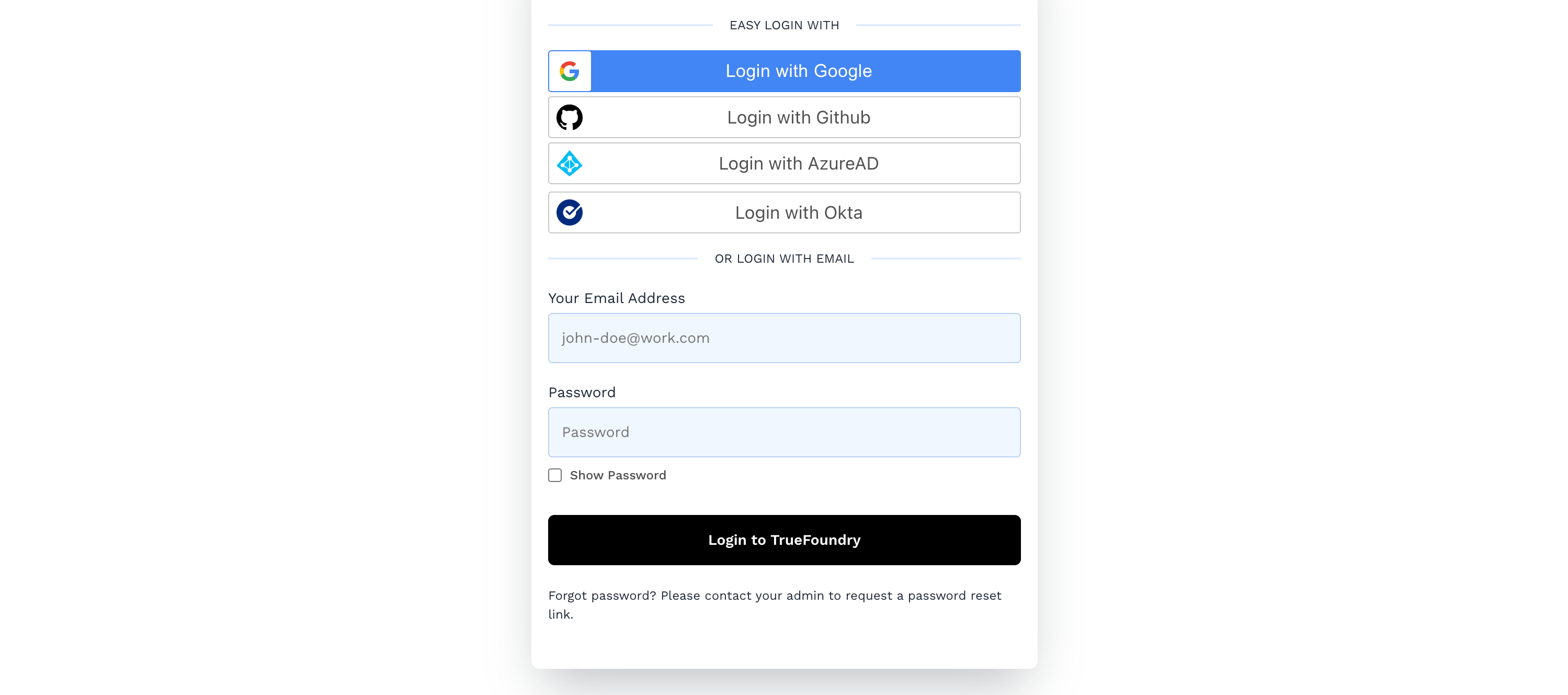

This documentation will guide you in configuring SAML v2 IdP for Azure AD/Microsoft Entra ID. In this case, TrueFoundry will act as Service Provider (SP) to Azure AD (IdP). Functionally, the result will allow you to display a “Login with Azure AD” button on your TrueFoundry login page and connect via SAML to Azure AD users/applications.

Create an Application in Azure
If you have already configured an Azure AD Enterprise application, skip this section. If you have not, please follow the brief steps outlined below:

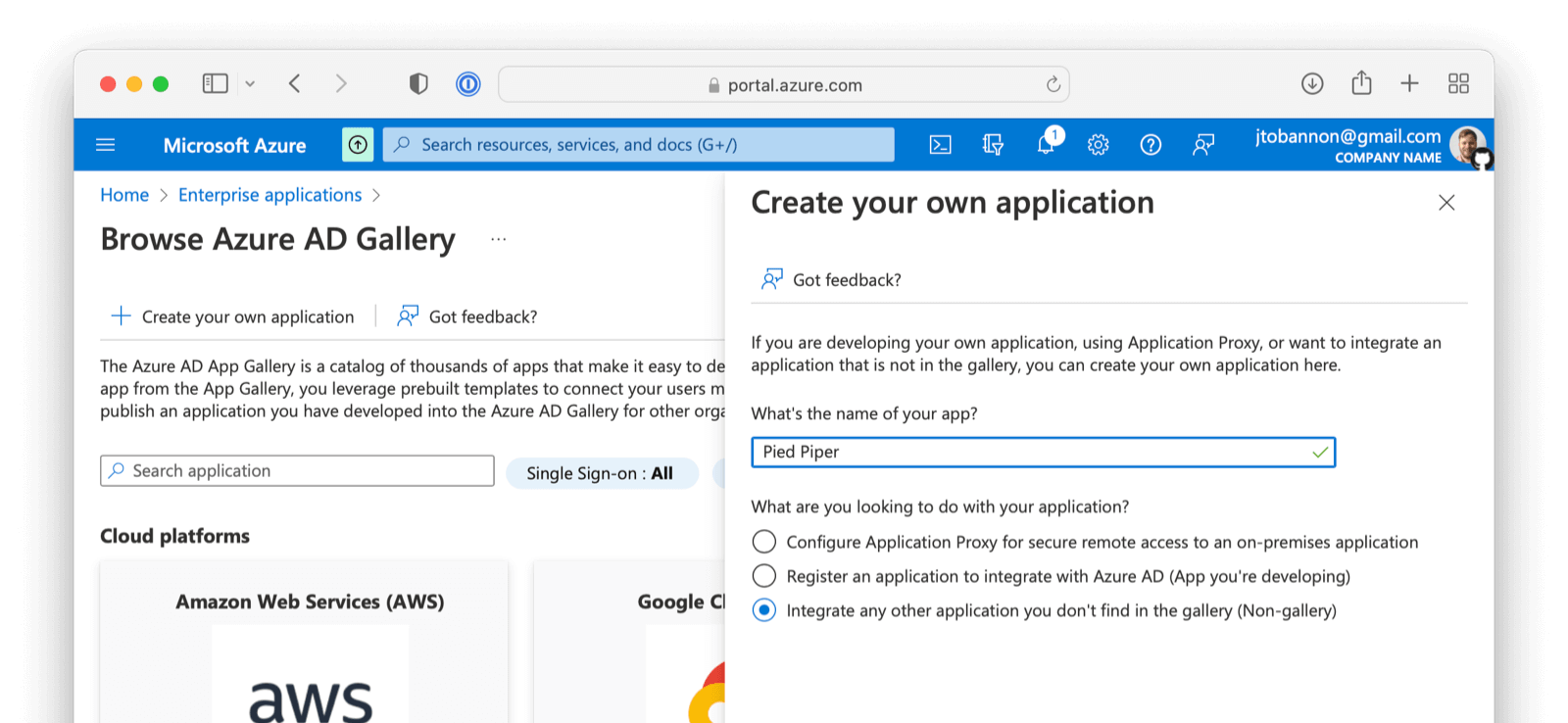

- From the Azure account portal navigate to
Enterprise Applications
. - At the top of the screen click on
New application
. - Click on
Create your own application
. - Name the application
- Select the third option -
Integrate any other application you don't find in the gallery (Non-gallery)
. - Click
Create

Configure Your Azure Application
From your application home screen, click on Single sign-on. Select the SAML option.

Integrate with TrueFoundry
To integrate Azure AD with TrueFoundry, provide the following configuration to truefoundry team via email:
-
Login URL: This value can be obtained from your Azure AD Application as demonstrated below. You will want to copy the Login URL value from Azure AD into this field.
-
Verification key: From the overview of your SAML application in Azure AD, under step three, you should find a Certificate (Base64) to download.
