XGBoost

We will need to know some information about the model you are logging to generate a deployment package.

• To load the model:
  • The serialization format (joblib,cloudpickle, pickle orjson) and the model file name.
• To generate the inference script and wrap it around a model server:
  • The input and output schema of the inference method.
    NOTE For XGBoost models we only support predict inference method name as of now.
• To deploy and run:
  • Python version along with pip package (numpy, xgboost) dependencies.

Log a deployable XGBoost Model

Below is an example of logging a model trained using XGBoost:

from truefoundry.ml import get_client, XGBoostFramework, xgboost_infer_schema

import joblib
import os
import numpy as np
from xgboost import XGBClassifier


X = np.array([[-1, -1], [-2, -1], [1, 1], [2, 1]])
y = np.array([0, 0, 1, 1])
clf = XGBClassifier()
clf.fit(X, y)


name = "my-xgboost-model"
LOCAL_MODEL_DIR = f"{name}/"
model_file_name = "xgboost-model.joblib"
model_file_path = f"{name}/{model_file_name}"

os.makedirs(LOCAL_MODEL_DIR, exist_ok=True)
joblib.dump(clf, model_file_path)

client = get_client()
model = joblib.load(model_file_path)
model_schema = xgboost_infer_schema(
    model_input=X, model=model,
)
model_version = client.log_model(
    ml_repo="project-classification",
    name="my-xgboost-model",
    description="A simple xgboost model",
    model_file_or_folder=model_file_path,
    framework=XGBoostFramework(
        model_filepath=model_file_name,
        serialization_format="joblib",
        model_schema=model_schema,
    ),
)

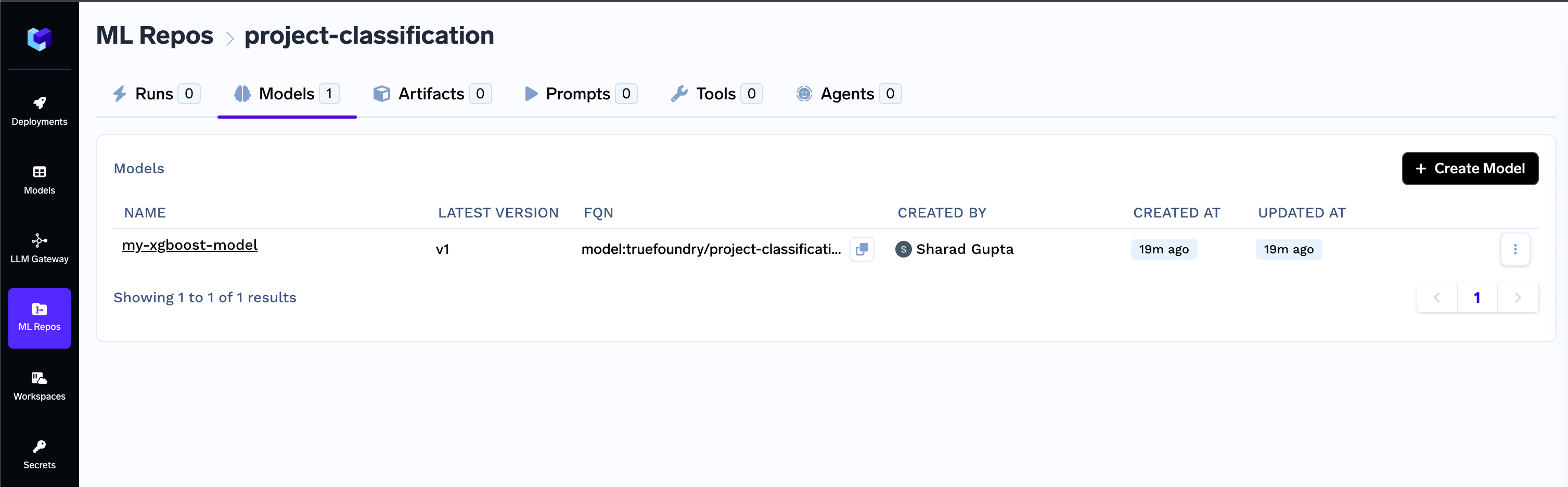

• View and manage recently logged models in the ML Repos.

• Access framework details like serialization format, model schema, and inference method.

• Access environment details like the Python version and pip packages list required for a specific model version.

Deploy the model

Once the model is deployable, you can start the deployment flow directly using the CLI.

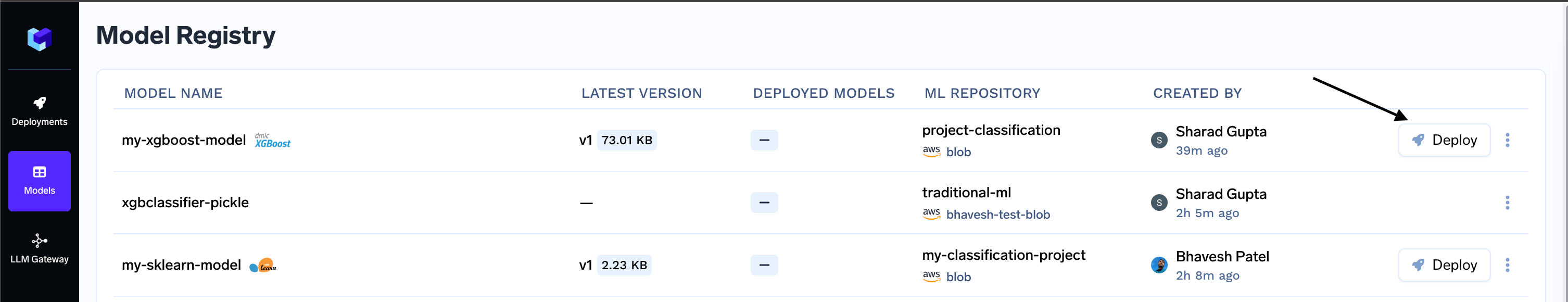

Navigate to the Model Registry

• Locate the desired model in the list and click on the Deploy button

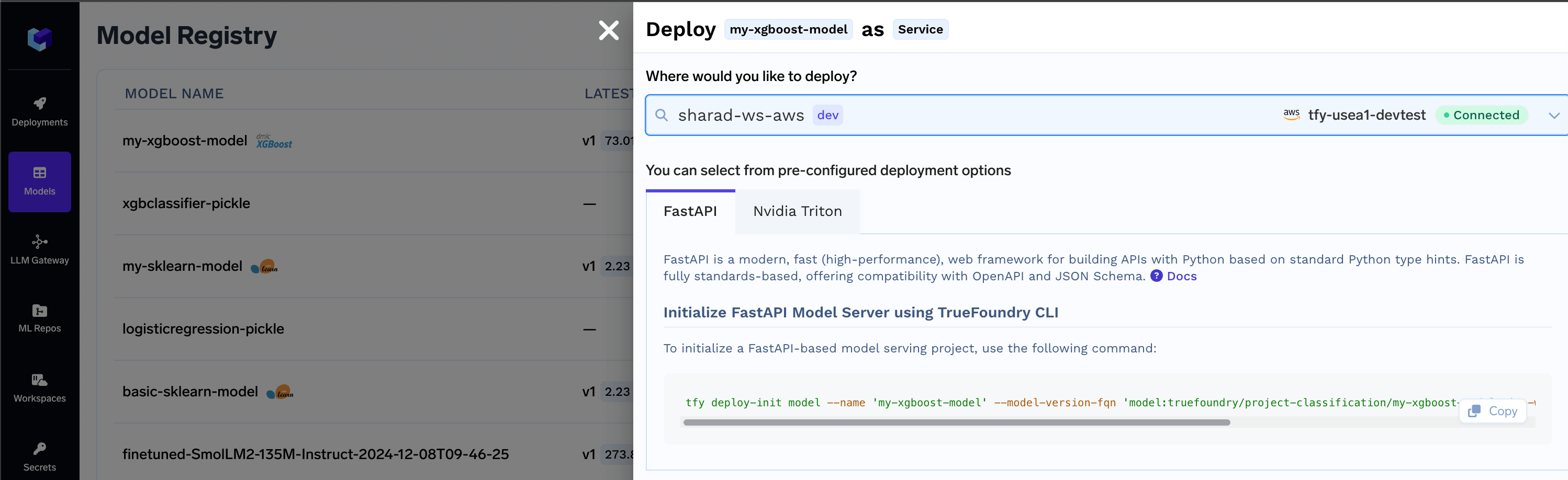

• Select the workspace for deployment, then click the copy icon to use the generated CLI command and initialize the model deployment package.

Common Model Deployment Issues and Troubleshooting Guide

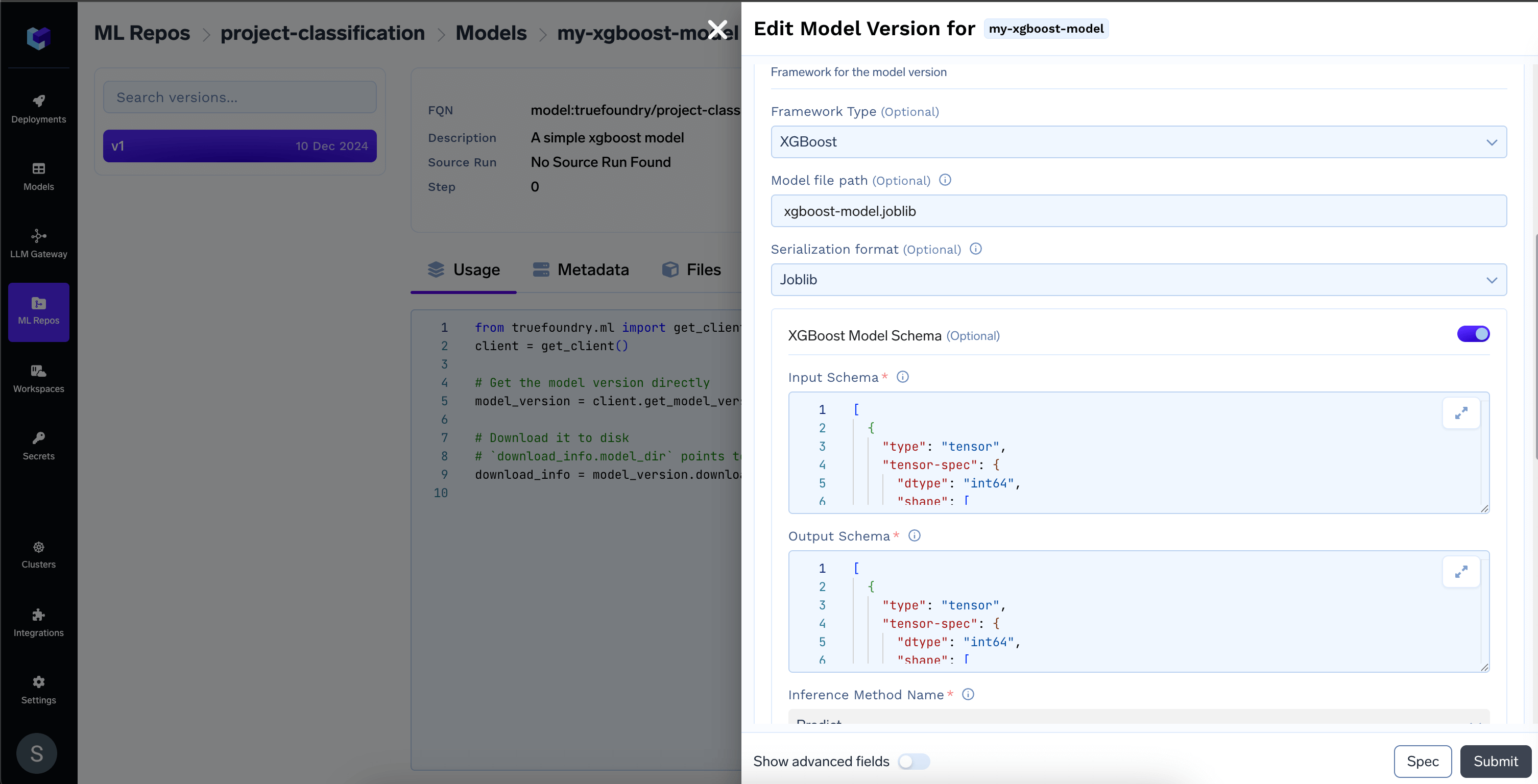

• Fix for Incomplete Model Manifest and make an existing logged model deployable

  ❕

  Deploying a logged model may fail due to an incomplete model manifest, causing errors like:

  -Model framework is not supported for deployment
  -Model filename not found, please save model filename while logging the model
  -Model schema not found, please save schema while logging the model
  -Serialization format not found, please save serialization format while logging the model

  Here’s an example code snippet to resolve the Incomplete Model Manifest by adding the required fields and updating the model version:

  Python

  from truefoundry.ml import get_client, ModelVersionEnvironment, XGBoostFramework, xgboost_infer_schema
  import joblib
  import numpy as np

  # Replace with your model version FQN
  model_version_fqn = "model:truefoundry/project-classification/my-xgboost-model:1"

  client = get_client()
  model_version = client.get_model_version_by_fqn(model_version_fqn)
  model_version.download(path=".")

  # Replace with your model file path
  model_file_path = "./xgboost-model.joblib"
  model = joblib.load(model_file_path)

  # Update the model input example as per your model
  X = np.array([[-1, -1], [-2, -1], [1, 1], [2, 1]])
  model_schema = xgboost_infer_schema(model_input=X, model=model)

  # To make the model deployable and generate the inference script, model file, and schema(with the method name) are required.
  model_version.framework = XGBoostFramework(
      model_filepath="xgboost-model.joblib",
      serialization_format="joblib",
      model_schema=model_schema,
  )

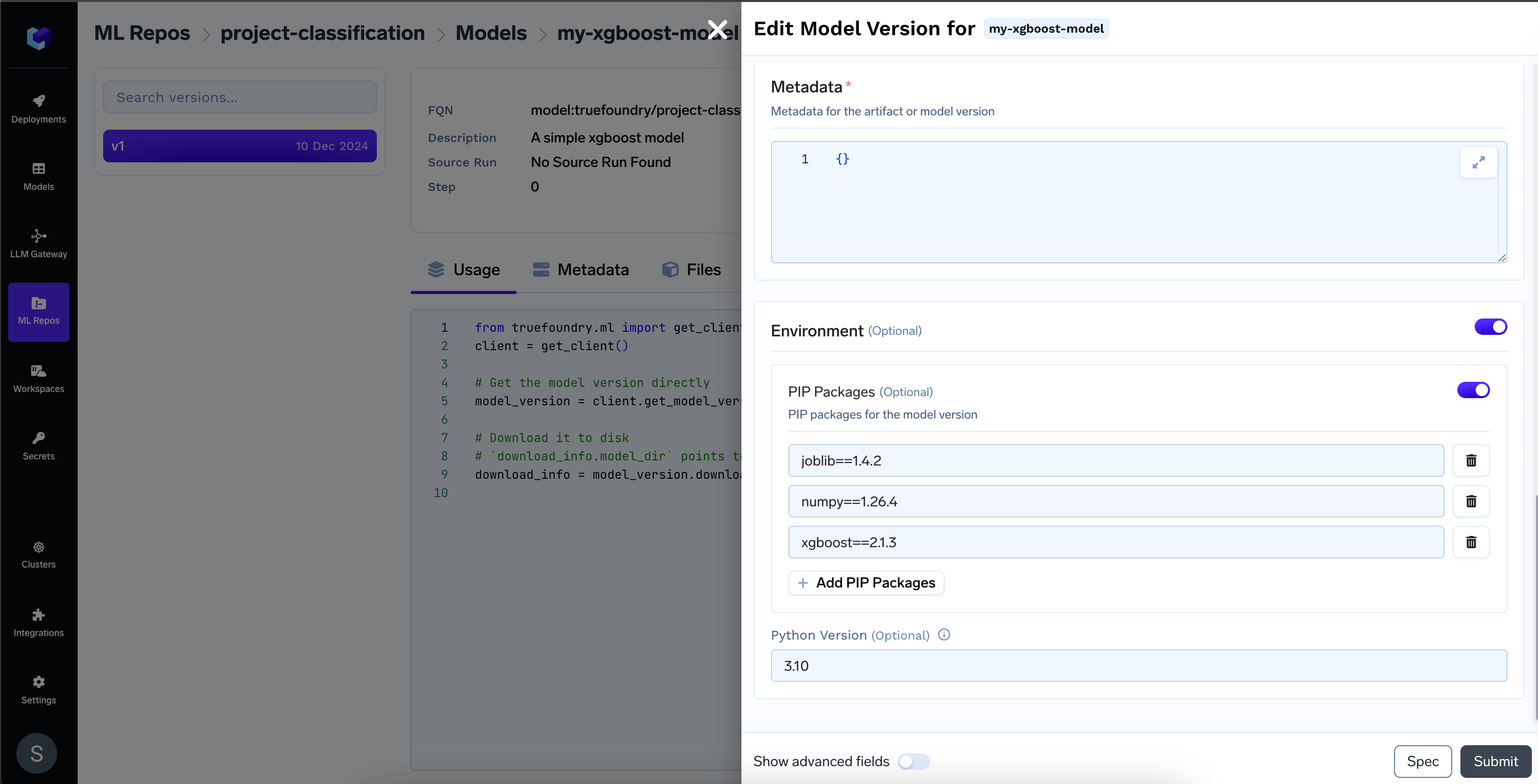

  model_version.environment = ModelVersionEnvironment(
      python_version="3.11",
      pip_packages=[
          "joblib==1.4.2",
          "numpy==1.26.4",
          "pandas==2.1.4",
          "xgboost==2.1.3",
      ],
  )
  model_version.update()

• Python version < 3.8 and > 3.12 is not supported for Triton deployment

  The Triton deployment depends on the nvidia-pytriton library (https://pypi.org/project/nvidia-pytriton/) which supports Python versions >=3.8 and <=3.12. If you need to use a version outside this range, consider using FastAPI as an alternative framework for serving the model.

• Numpy version must be specified for Triton deployment,Numpy version must be less than 2.0.0 for Triton deployment

  The nvidia-pytriton library specifies in its pyproject.toml file that it does not support numpy versions >=2.0. This limitation has been confirmed through practical experience. If you need to use a version outside this range, consider using FastAPI as an alternative framework for serving the model.
